Geometry

Classes:

Distance([pairwise, n_dim, metric, squareform])

Given an n_samples x n_dimensions array, compute pairwise or mean distances

Angle([abs, degrees])

Get angle between line formed by two points and horizontal axis

IMU_Orientation([use_kalman, invert_gyro])

Compute absolute orientation (roll, pitch) from accelerometer and gyroscope measurements (eg from hardware.i2c.I2C_9DOF )

Rotate([dims, rotation_type, degrees, ...])

Rotate in 3 dimensions using scipy.spatial.transform.Rotation

Spheroid([target, source, fit])

Fit and transform 3d coordinates according to some spheroid.

Order_Points([closeness_threshold])

Order x-y coordinates into a line, such that each point (row) in an array is ordered next to its nearest points

Linefit_Prasad([return_metrics])

Given an ordered series of x/y coordinates (see Order_Points ), use D.Prasad et al.'s parameter-free line fitting algorithm to make a simplified, fitted line.
class Distance(pairwise: bool = False, n_dim: int = 2, metric: str = 'euclidean', squareform: bool = True, *args, **kwargs)[source]

Bases: Transform

Given an n_samples x n_dimensions array, compute pairwise or mean distances

Parameters:

  • pairwise (bool) – If False (default), return mean distance. if True, return all distances

  • n_dim (int) – number of dimensions (input array will be filtered like input[:,0:n_dim]

  • metric (str) – any metric acceptable to :func:`scipy.spatial.distance.pdist

  • squareform (bool) – if pairwise is True, if True return square distance matrix, otherwise return compressed distance matrix (dist(X[i], X[j] = y[i*j])

  • *args

  • **kwargs

Attributes:

format_in

format_out

Methods:

process(input)

format_in = {'type': <class 'numpy.ndarray'>}
format_out = {'type': <class 'numpy.ndarray'>}
process(input: ndarray)[source]
class Angle(abs=True, degrees=True, *args, **kwargs)[source]

Bases: Transform

Get angle between line formed by two points and horizontal axis

Attributes:

format_in

format_out

Methods:

process(input)

format_in = {'type': <class 'numpy.ndarray'>}
format_out = {'type': <class 'float'>}
process(input)[source]
class IMU_Orientation(use_kalman: bool = True, invert_gyro: bool = False, *args, **kwargs)[source]

Bases: Transform

Compute absolute orientation (roll, pitch) from accelerometer and gyroscope measurements (eg from hardware.i2c.I2C_9DOF )

Uses a timeseries.Kalman filter, and implements [PPT+18] to fuse the sensors

Can be used with accelerometer data only, or with combined accelerometer/gyroscope data for greater accuracy

Parameters:

  • invert_gyro (bool) – if the gyroscope’s orientation is inverted from accelerometer measurement, multiply gyro readings by -1 before using

  • use_kalman (bool) – Whether to use kalman filtering (True, default), or return raw trigonometric transformation of accelerometer readings (if provided, gyroscope readings will be ignored)

Variables:

kalman (transform.timeseries.Kalman) – If use_kalman == True , the Kalman Filter.

References

[PPT+18] [ABCO15]

Methods:

process(accelgyro)

Parameters:

accelgyro (tuple, numpy.ndarray) -- tuple of (accelerometer[x,y,z], gyro[x,y,z]) readings as arrays, or
process(accelgyro: Tuple[ndarray, ndarray] | ndarray) → ndarray[source]
Parameters:

accelgyro (tuple, numpy.ndarray) – tuple of (accelerometer[x,y,z], gyro[x,y,z]) readings as arrays, or an array of just accelerometer[x,y,z]

Returns:

filtered [roll, pitch] calculations in degrees

Return type:

numpy.ndarray

class Rotate(dims='xyz', rotation_type='euler', degrees=True, inverse='', rotation=None, *args, **kwargs)[source]

Bases: Transform

Rotate in 3 dimensions using scipy.spatial.transform.Rotation

Parameters:

  • dims (“xyz”) – string specifying which axes the rotation will be around, eg "xy" , "xyz"`

  • rotation_type (str) – Format of rotation input, must be one available to the Rotation class (but currently only euler angles are supported)

  • degrees (bool) – whether to output rotation in degrees (True, default) or radians

  • inverse (“xyz”) – dimensions in the “rotation” input to Rotate.process() to inverse before applying rotation

  • rotation (tuple, list, numpy.ndarray, None) – If supplied, use the same rotation for all processed data. If None, Rotate.process() will expect a tuple of (data, rotation).

Methods:

process(input)

Parameters:

input (tuple, numpy.ndarray) -- a tuple of (input[x,y,z], rotation[x,y,z]) where input is to be rotated
process(input)[source]
Parameters:

input (tuple, numpy.ndarray) – a tuple of (input[x,y,z], rotation[x,y,z]) where input is to be rotated according to the axes in rotation (indicated in Rotate.dims ). If only an input array is provided, a static rotation array must have been provided in the constructor (otherwise the most recent rotation will be used)

Returns:

numpy.ndarray - rotated input array

class Spheroid(target=(1, 1, 1, 0, 0, 0), source: tuple = (None, None, None, None, None, None), fit: ndarray | None = None, *args, **kwargs)[source]

Bases: Transform

Fit and transform 3d coordinates according to some spheroid.

Eg. for calibrating accelerometer readings by transforming them from their uncalibrated spheroid to the expected sphere with radius == 9.8m/s/s centered at (0,0,0).

Does not estimate/correct for rotation of the spheroid.

Examples

# Calibrate an accelerometer by transforming
# readings to a 9.8-radius sphere centered at 0
>>> sphere = Spheroid(target=(9.8,9.8,9.8,0,0,0))

# take some readings...
# imagine we're taking them from some sensor idk
# say our sensor slightly exaggerates gravity
# in the z-axis...
>>> readings = np.array((0.,0.,10.5))

# fit our object (need >>1 sample)
>>> sphere.fit(readings)

# transform to proper gravity
>>> sphere.process(readings)
[0., 0., 9.8]
Parameters:

  • target (tuple) – parameterization of spheroid to transform to, if none is passed, transform to unit circle centered at (0,0,0). parameterized as:

    (a, # radius of x dimension

    b, # radius of y dimension c, # radius of z dimension x, # x-offset y, # y-offset z) # z-offset

  • source (tuple) – parameterization of spheroid to transform from in the same 6-tuple form as target, if None is passed, assume we will use Spheroid.fit()

  • fit (None, numpy.ndarray) – Initialize with values to fit, if None assume fit will be called later.

References

Methods:

fit(points, **kwargs)

Fit a spheroid from a set of noisy measurements

process(input)

Transform input (x,y,z) points such that points in source are mapped to those in target

generate(n[, which, noise])

Generate random points from the ellipsoid
fit(points, **kwargs)[source]

Fit a spheroid from a set of noisy measurements

updates the _scale and _offset private arrays used to manipulate input data

Note

It’s usually important to pass bounds to scipy.optimize.curve_fit() !!! passed as a 2-tuple of ((min_a, min_b, ...), (max_a, max_b...)) In particular such that a, b, and c are positive. If no bounds are passed, assume at least that much.

Parameters:
Returns:

parameters of fit ellipsoid (a,b,c,x,y,z)

Return type:

tuple

process(input: ndarray)[source]

Transform input (x,y,z) points such that points in source are mapped to those in target

Parameters:

input (numpy.ndarray) – x, y, and z coordinates

Returns:

coordinates transformed according to the spheroid requested

Return type:

numpy.ndarray

generate(n: int, which: str = 'source', noise: float = 0)[source]

Generate random points from the ellipsoid

Parameters:

  • n (int) – number of points to generate

  • which (‘str’) – which spheroid to generate from? (‘source’ - default, or ‘target’)

  • noise (float) – noise to add to points

Returns:

(n, 3) array of generated points

Return type:

numpy.ndarray

class Order_Points(closeness_threshold: float = 1, **kwargs)[source]

Bases: Transform

Order x-y coordinates into a line, such that each point (row) in an array is ordered next to its nearest points

Useful for when points are extracted from an image, but need to be treated as a line rather than disordered points!

Starting with a point, find the nearest point and add that to a deque. Once all points are found on the ‘forward pass’, start the initial point again goind the ‘other direction.’

The threshold parameter tunes the (percentile) distance consecutive points may be from one another. The default threshold of 1 will connect all the points but won’t necessarily find a very compact line. Lower thresholds make more sensible lines, but may miss points depending on how line-like the initial points are.

Note that the first point chosen (first in the input array) affects the line that is formed with the points do not form an unambiguous line. I am not surehow to arbitrarily specify a point to start from, but would love to hear what people want!

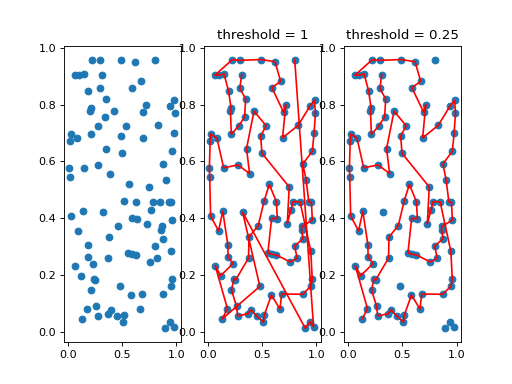

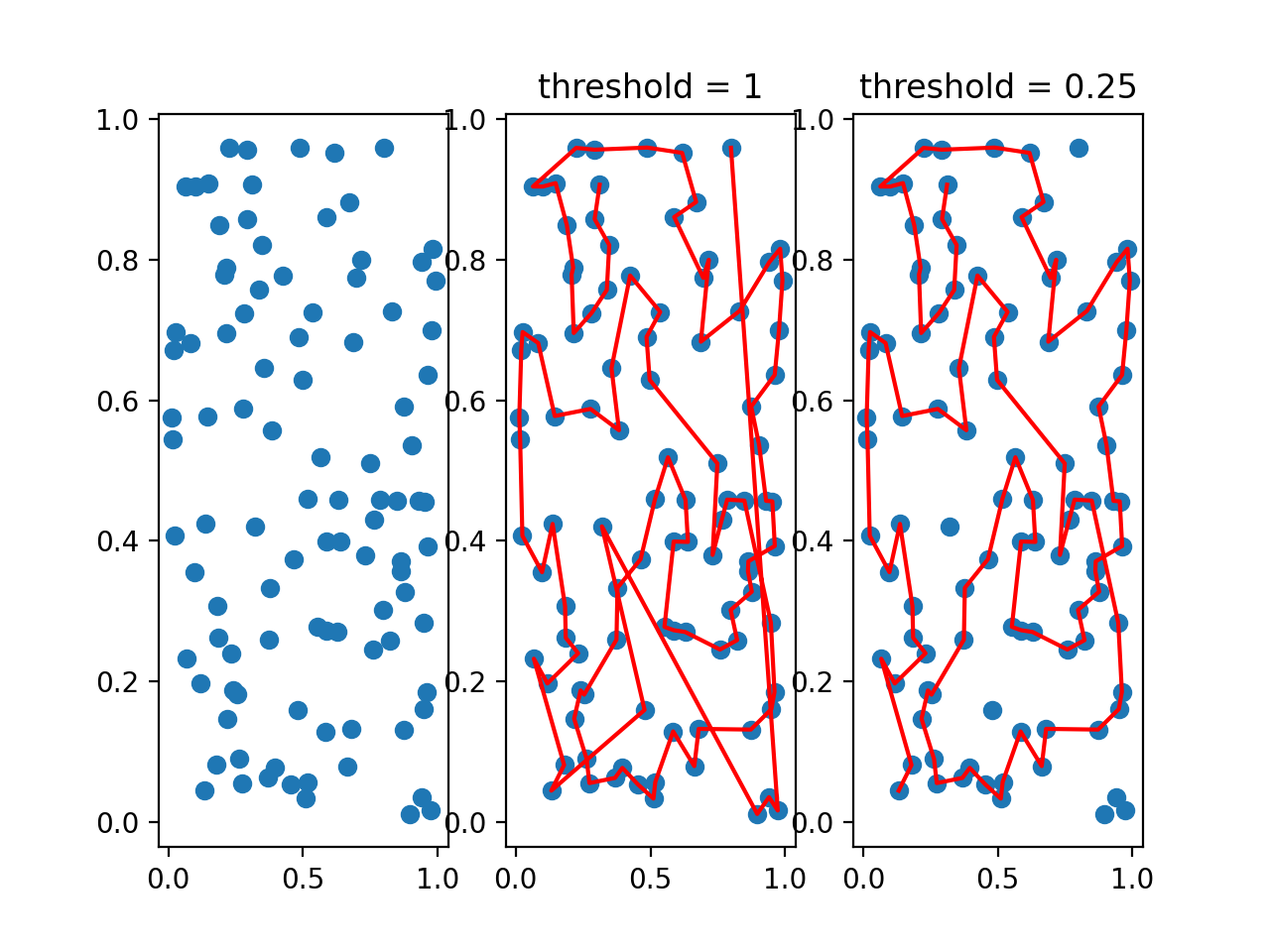

Examples

(Source code, png, hires.png, pdf)

../_images/geometry-1.png
Parameters:

closeness_threshold (float) – The percentile of distances beneath which to consider connecting points, from 0 to 1. Eg. 0.5 would allow points that are closer than 50% of all distances between all points to be connected. Default is 1, which allows all points to be connected.

Methods:

process(input)

Parameters:

input (numpy.ndarray) -- an n x 2 array of x/y points
process(input: ndarray) → ndarray[source]
Parameters:

input (numpy.ndarray) – an n x 2 array of x/y points

Returns:

numpy.ndarray Array of points, reordered into a line

class Linefit_Prasad(return_metrics: bool = False, **kwargs)[source]

Bases: Transform

Given an ordered series of x/y coordinates (see Order_Points ), use D.Prasad et al.’s parameter-free line fitting algorithm to make a simplified, fitted line.

Optimized from the original MATLAB code, including precomputing some of the transformation matrices. The attribute names are from the original, and due to the nature of code transcription doesn’t follow some of Autopilot’s usual structural style.

Parameters:

return_metrics (bool)

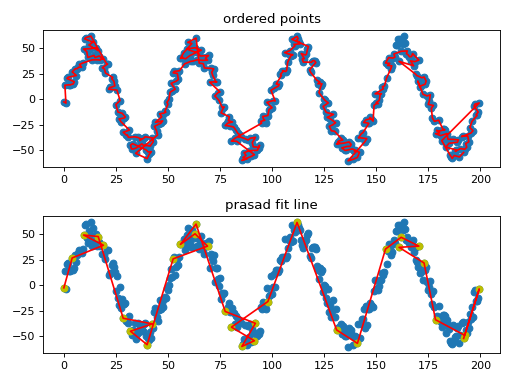

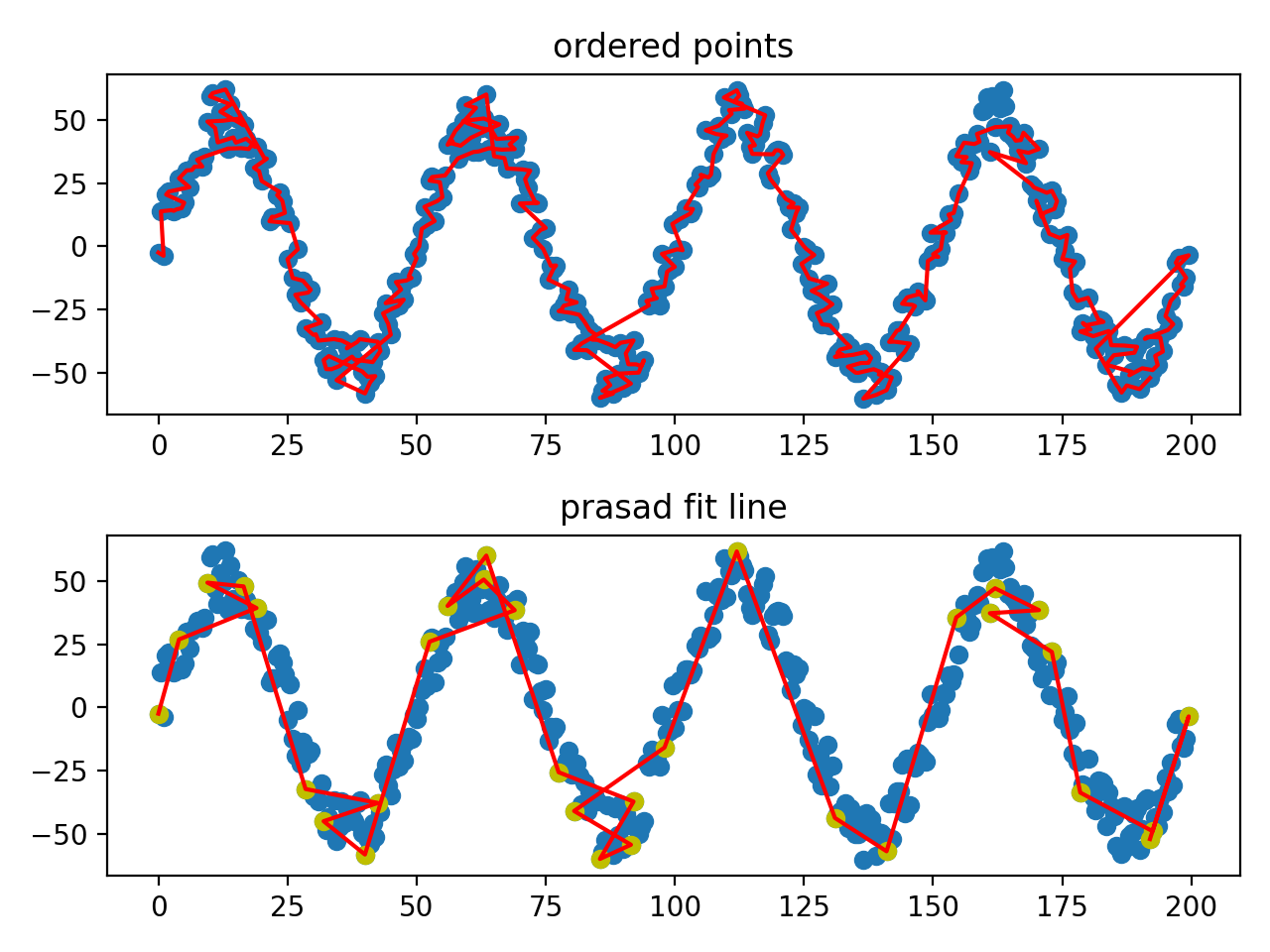

Examples

(Source code, png, hires.png, pdf)

../_images/geometry-2.png

References

[PQLC11] Original MATLAB Implementation: https://docs.google.com/open?id=0B10RxHxW3I92dG9SU0pNMV84alk

Methods:

process(input)

Given an n x 2 array of ordered x/y points, return
process(input: ndarray) → ndarray[source]

Given an n x 2 array of ordered x/y points, return

Parameters:

input (numpy.ndarray) – n x 2 array of ordered x/y points

Returns:

numpy.ndarray an m x 2 simplified array of line segments
